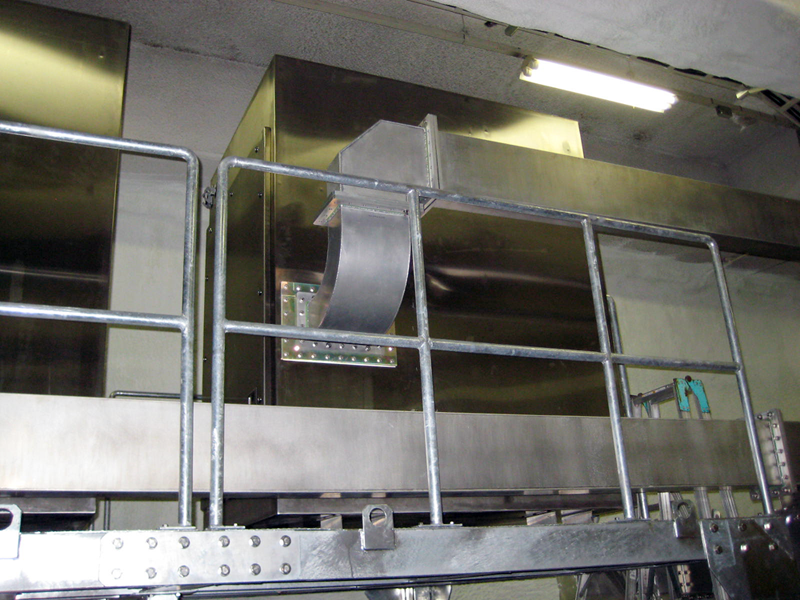

| Waveguide by Machlett is protected and iridited to military grade specifications. Ensuring corrosion resistance of the waveguide. Machlett will customize your layout to fit your needs. |

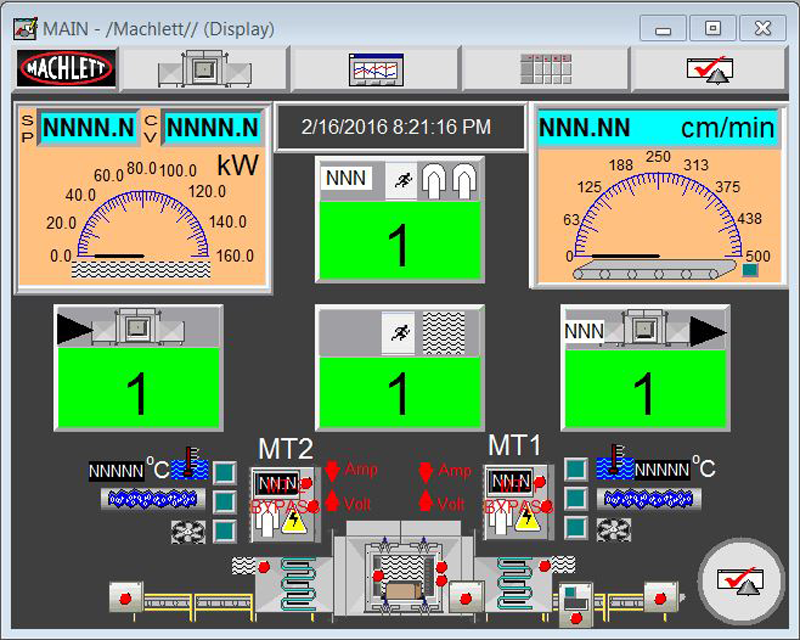

Allen Bradley touchscreen showing all interlocks and control functions. |

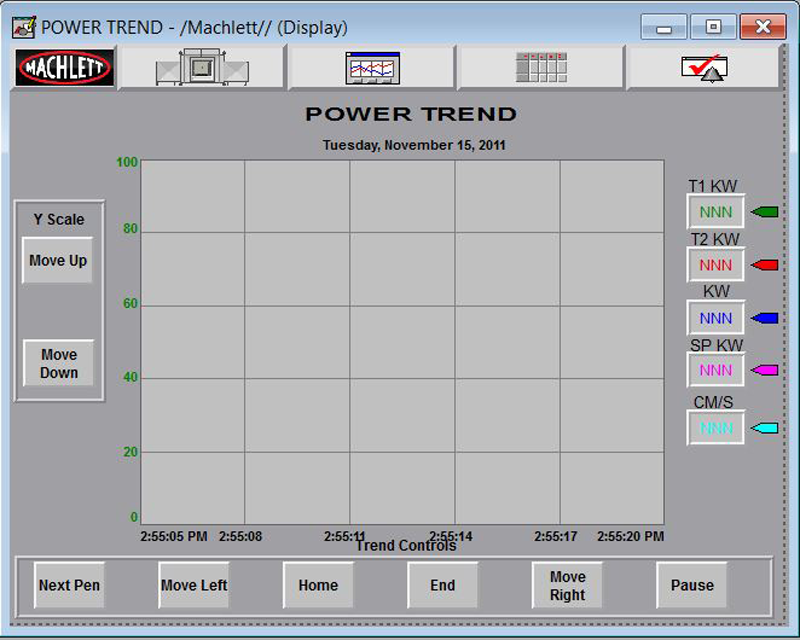

Power trending page designed for optimizing and monitoring all system functions. |

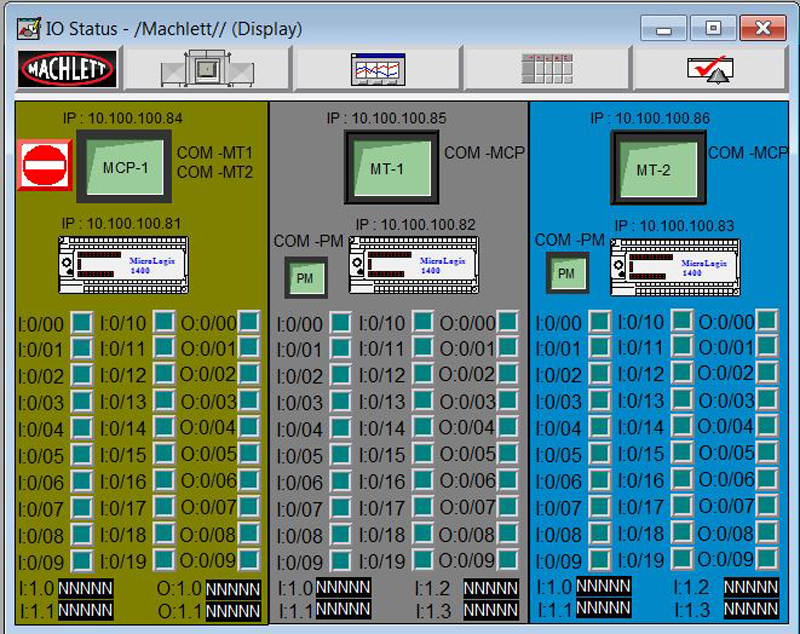

Interlock and system monitoring of every function. All functions are displayed any clearly noted. |

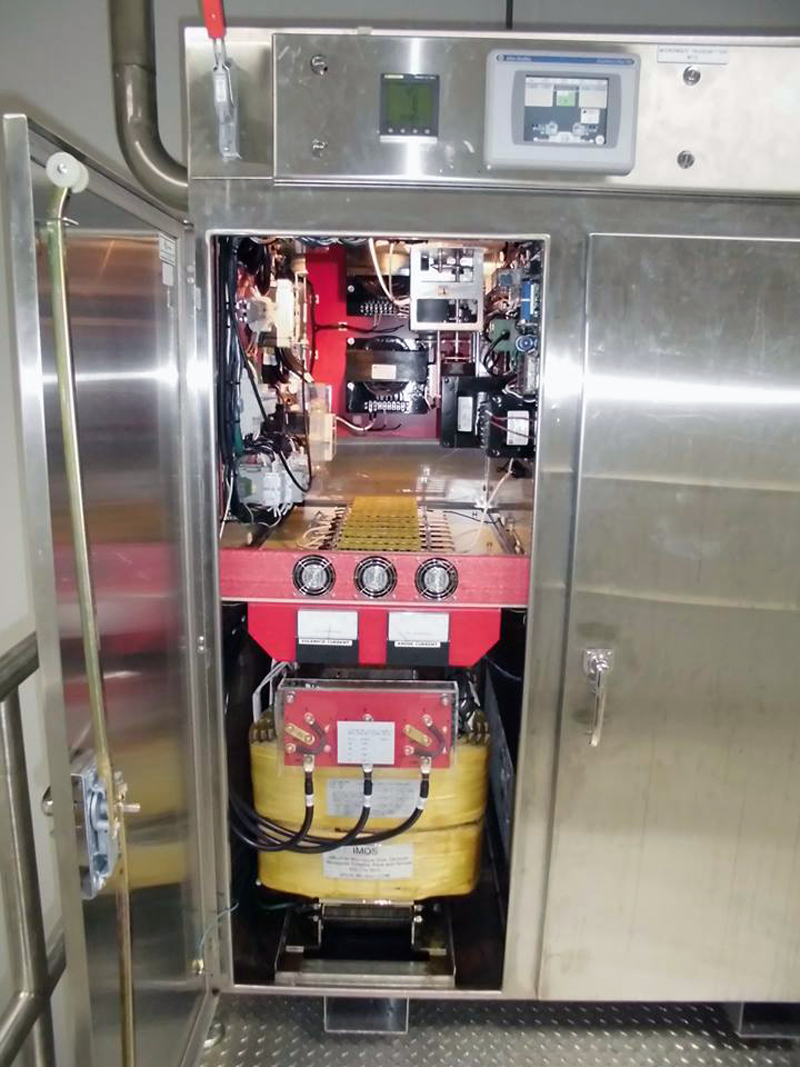

MachWave transmitter with one access door open. |
 |
 |
 |
 |
 |

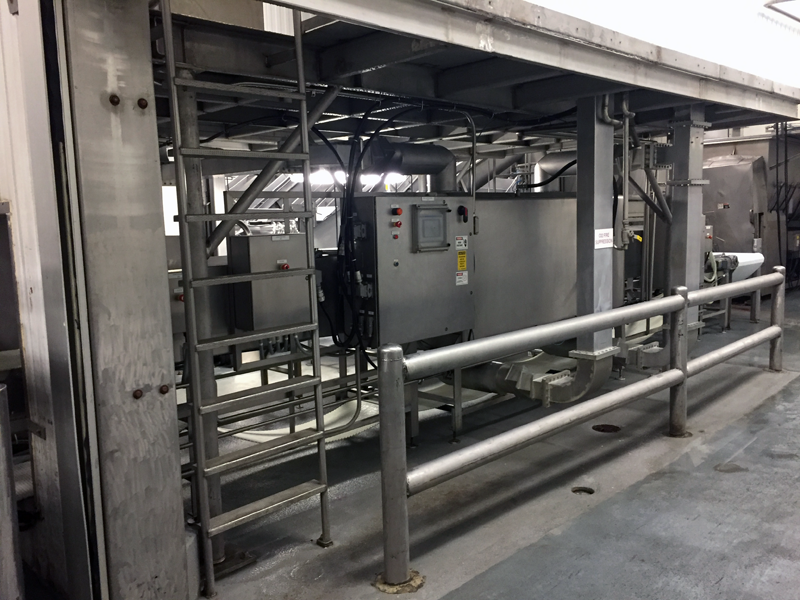

| Tempering system showing the product tempering. |

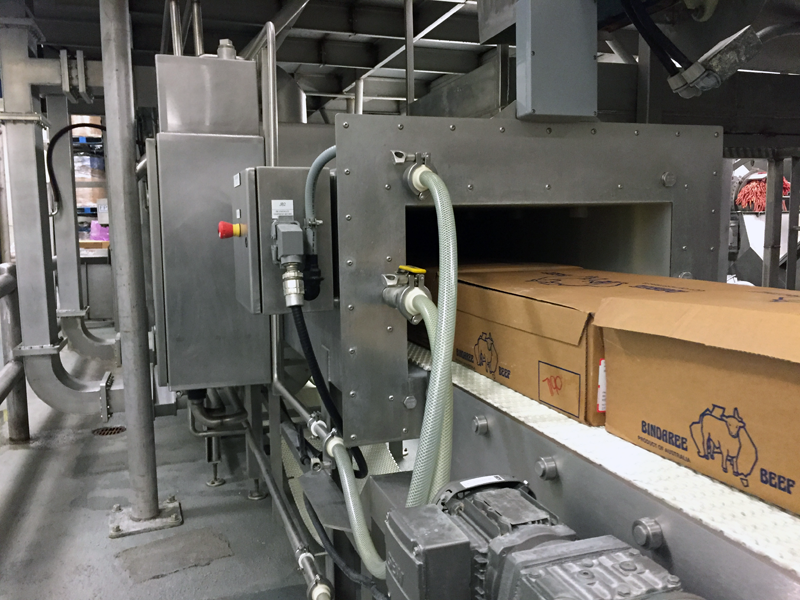

Product existing the Machlett tempering system. |

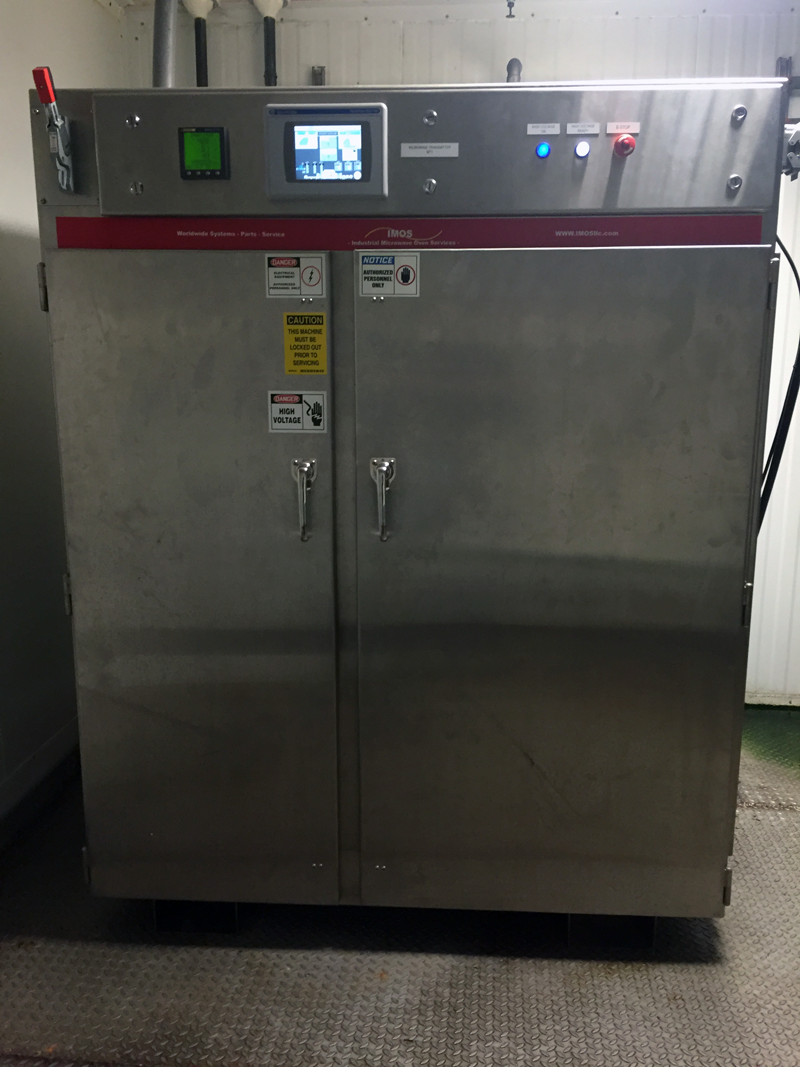

Machwave transmitters are designed with on board PLC and color touchscreen control. This provides ease of operation and maintenance. |

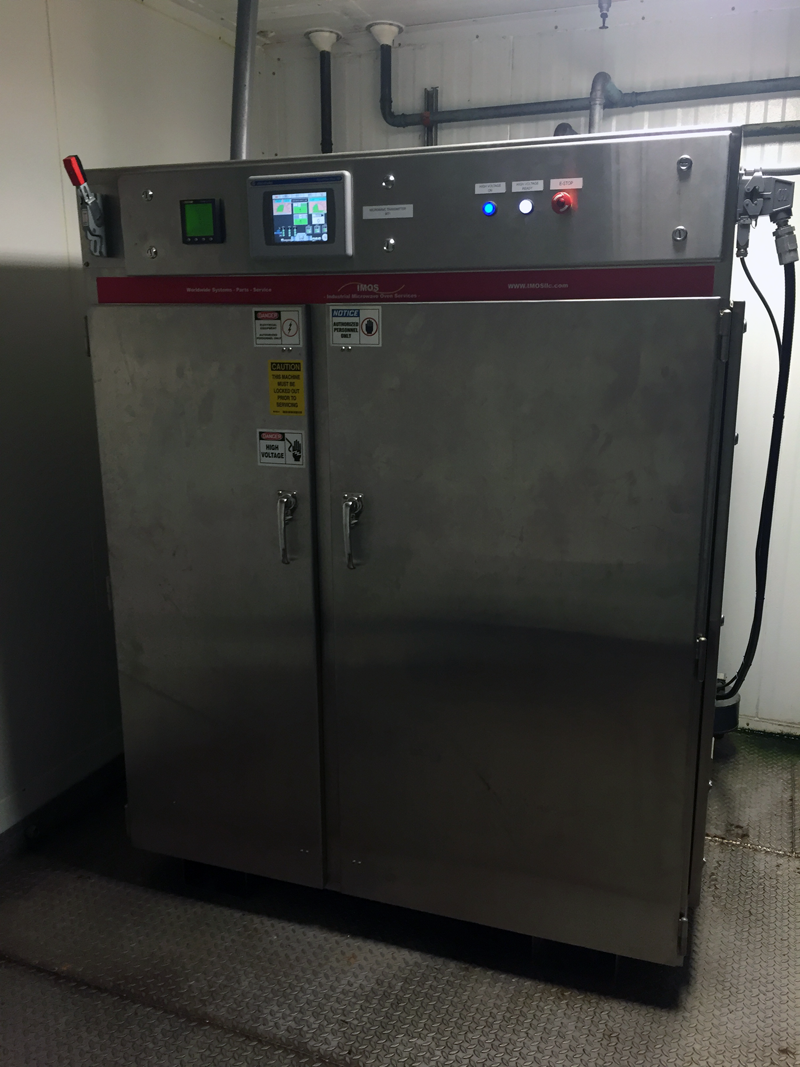

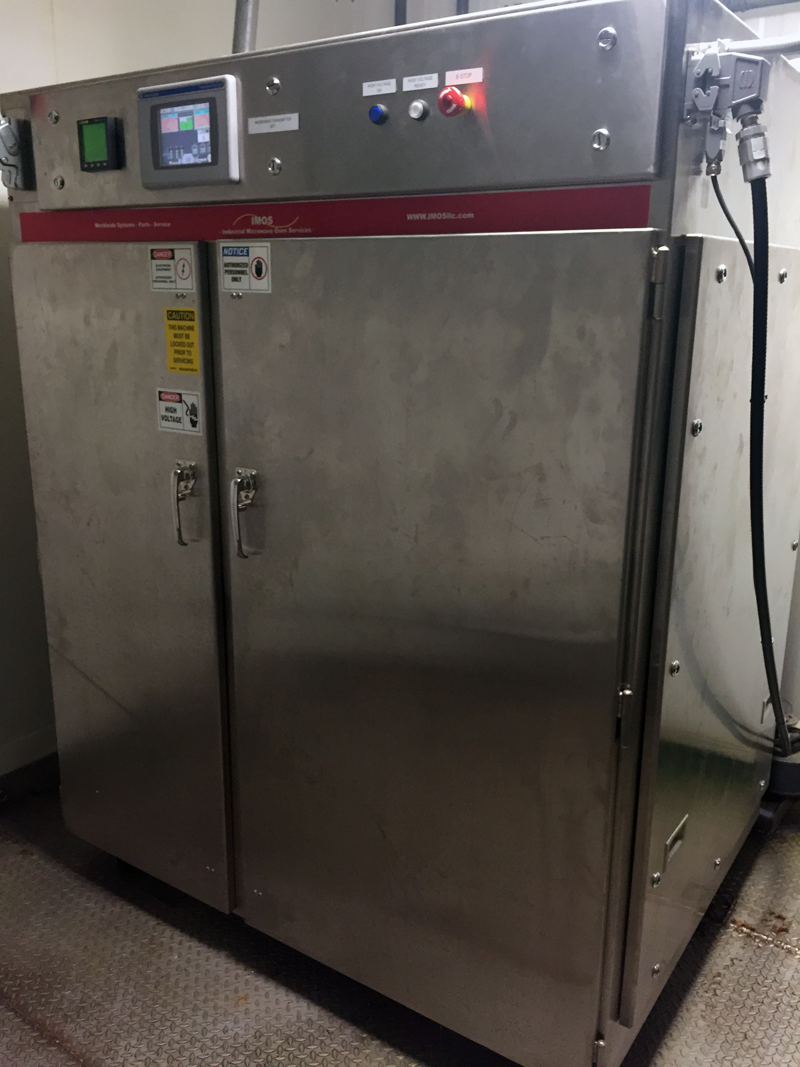

MachWave Transmitter in full operation. Each transmitter produces 0-75 kW of output power.
|

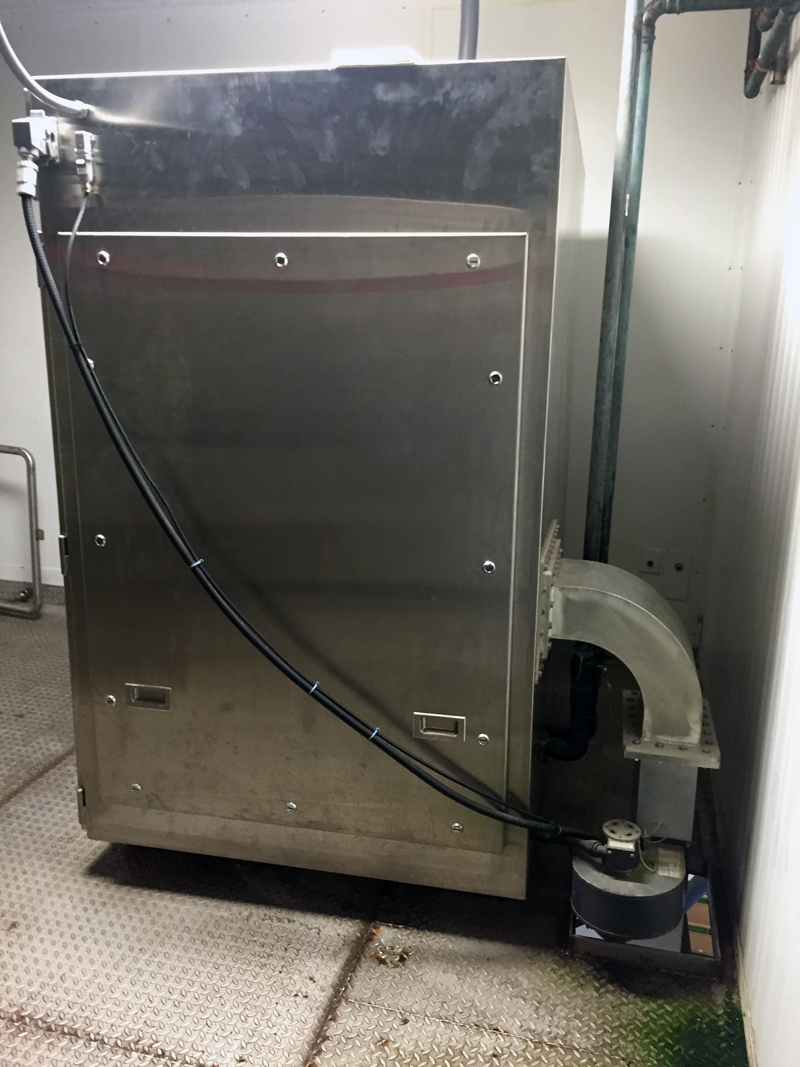

Transmitter with removable side panel shown. Note the cables pre-wired and installed. |
 |
 |
 |
 |
 |
| Transmitter side access panel. The only transmitter to provide clear and easy access to all areas of the transmitter. |
Exit end of the tempering tunnel. Note the all stainless construction and clean sanitary design for all the plumbing and electrical fittings. |

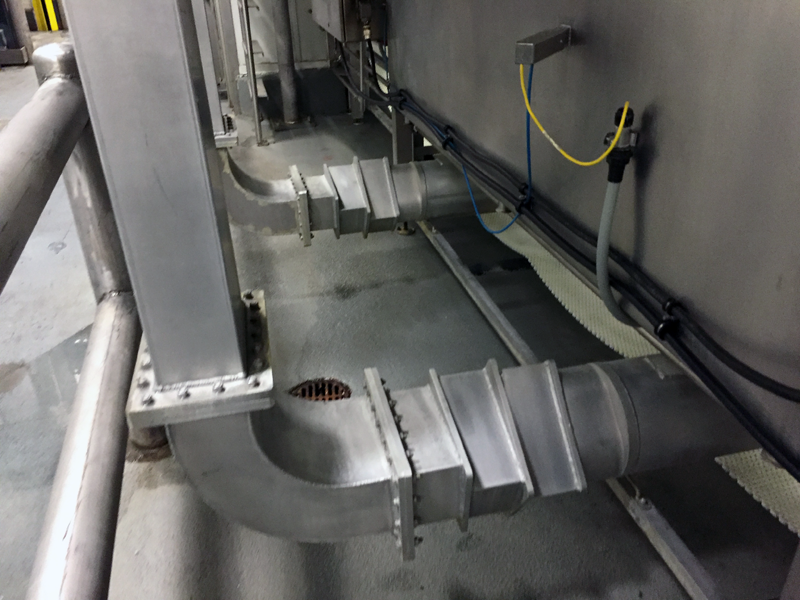

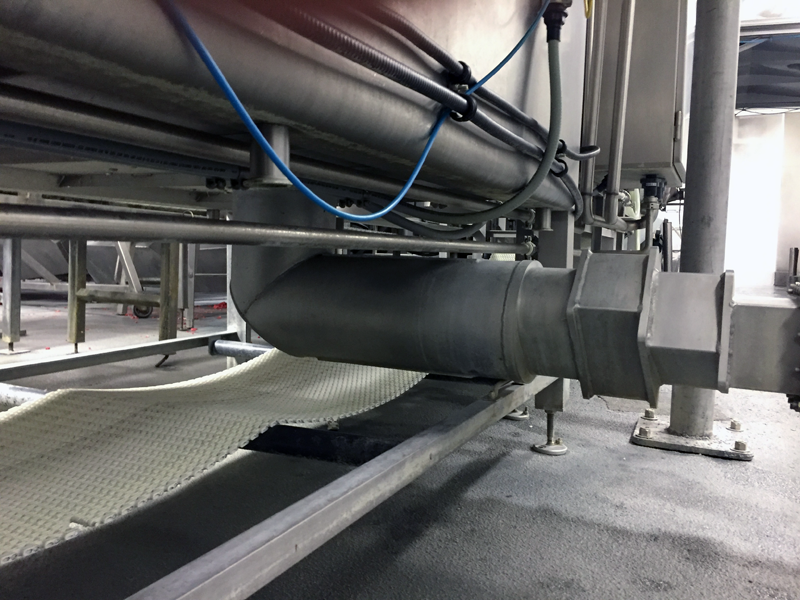

Machwave Circular feeds. Note the step twist design and the circular feed entering the lower part of the tempering cavity. |
Close up view of the MachWave Circular Feed. |

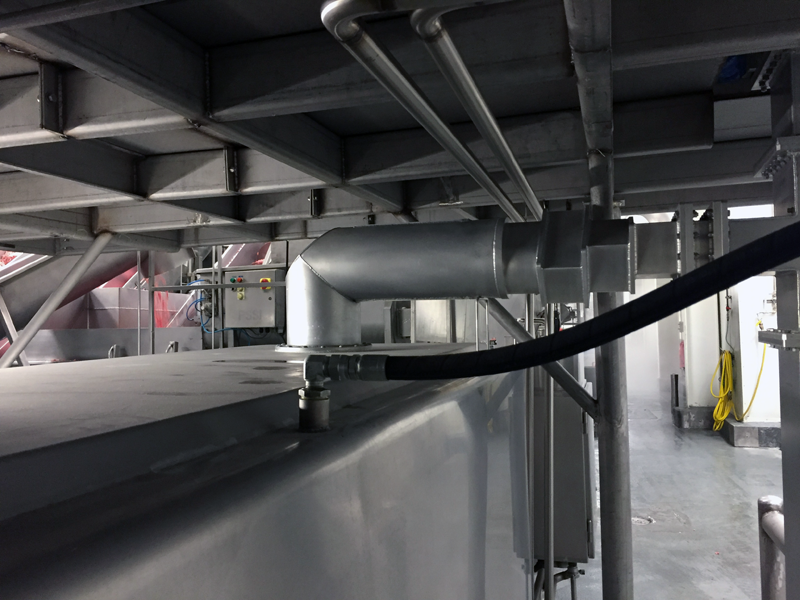

Circular Feed entering the top of the cavity. Each feed is capable of handling 100 kW of total power. |
 |
 |
 |
 |
 |

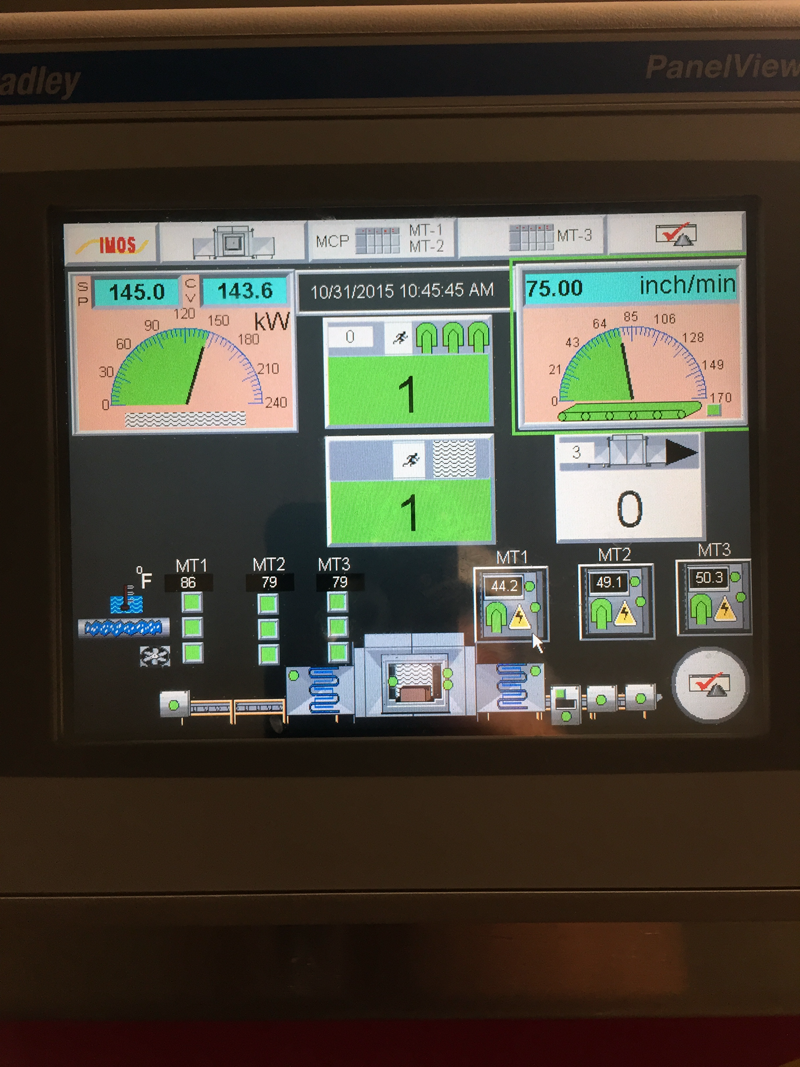

| Easy operation PLC controls showing the system in full operation. |

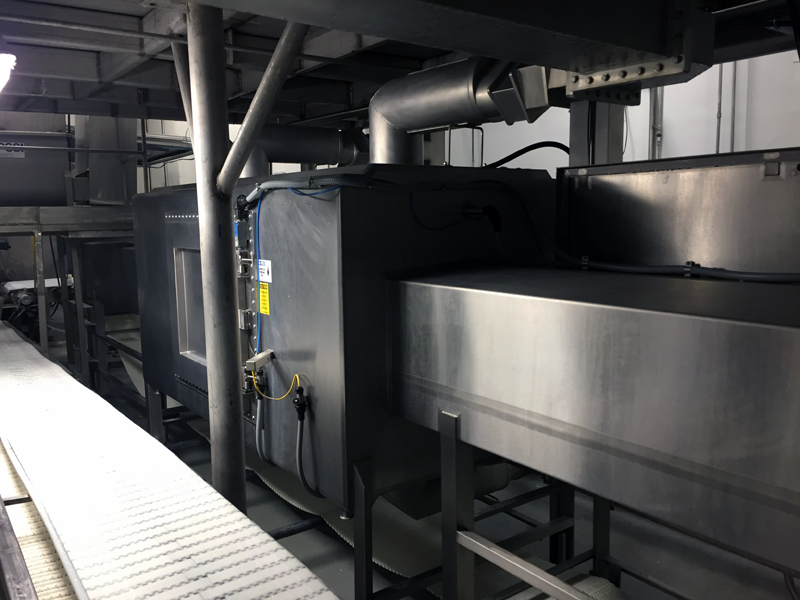

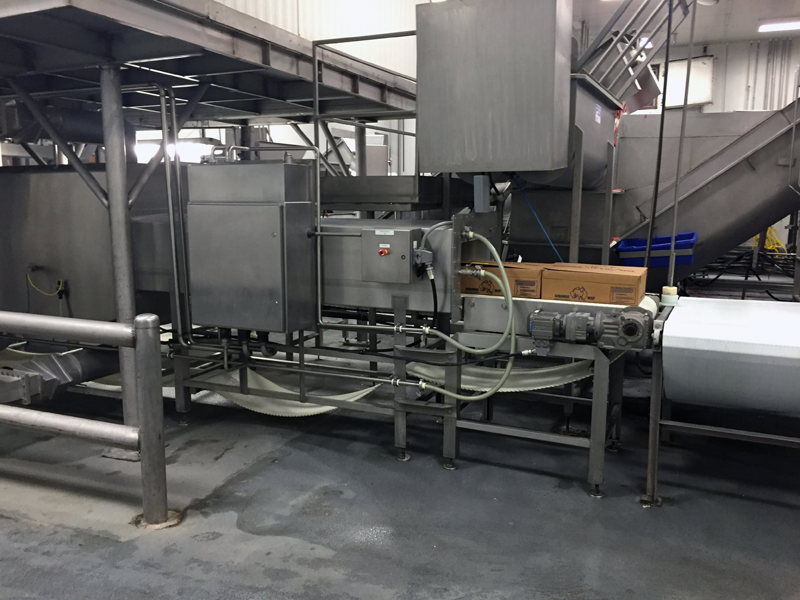

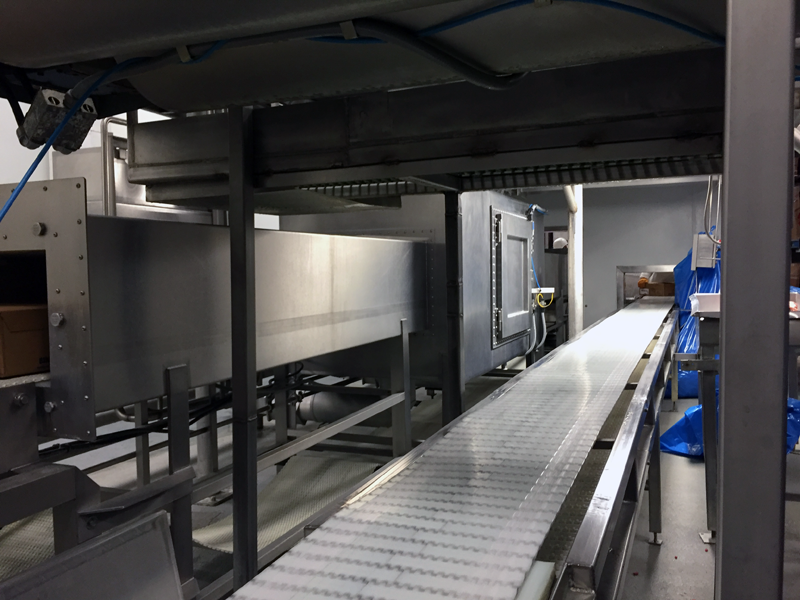

Front view of the tempering tunnel with a return conveyor. |
MachWave circular feeds are designed to provide highly efficient polarized microwave energy.
|

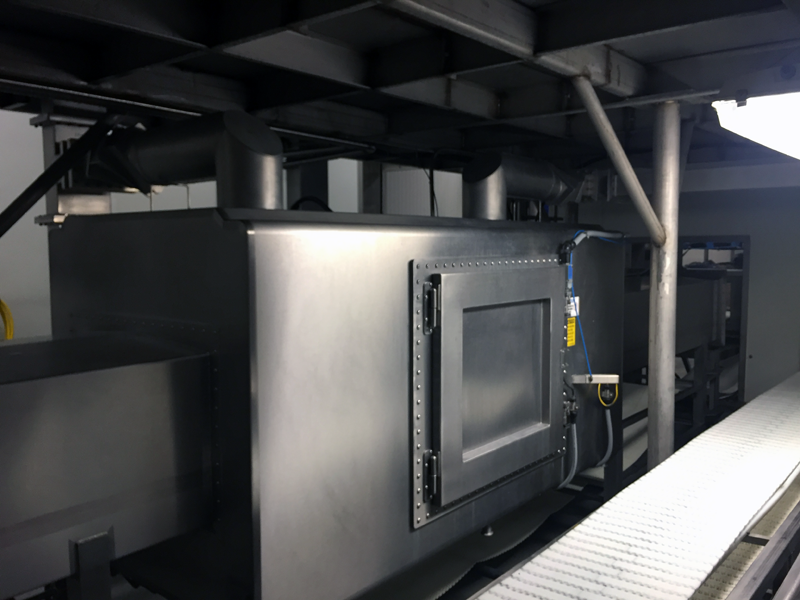

Close up of the MachWave Microwave Door. |
Rear View of the Machlett Tempering System 150 kW. |
| |
|
|
